We clear who is responsible for balcony drainage and waterproofing at the interface so you can act fast. In the first instance, architects set the intent, waterproofers specify membranes and falls, and plumbers size outlets and connect to rainwater pipes. We explain these roles so designers and trades coordinate from concept to completion.
Good drainage stops standing water that damages a building and creates health and safety problems. Free‑draining edges, drip trays or positive routing to a rainwater pipe each have trade‑offs in cost, appearance and long‑term maintenance. Stacked balconies need careful planning to avoid uneven discharge and staining.
We recommend early collaboration between architect, plumber and waterproofer to choose solutions such as lineal threshold drains when depth allows, or multiple outlets along a channel to improve flow and reduce blockages.
If you need emergency help with blocked drains, burst pipes or leaks in Melbourne, call OnCall Emergency Plumbers on 1800 571 216 — we operate 24/7 with quality brands and experienced teams.
Key Takeaways
- Define roles early: architect, plumber and waterproofer must coordinate.
- Choose between free draining, drip trays or positive routing based on site and cost.
- Lineal threshold drains suit restricted areas if profile depth allows.
- Stacked edges require outlet planning to avoid cumulative discharge.
- Call OnCall 24/7 on 1800 571 216 for urgent water or leak problems.
What we mean by roles at the balcony edge
At the edge where external surfaces meet interiors, clear role lines stop minor leaks turning into major repairs.
We define the edge interface as the junction where the waterproofing membrane, door threshold and outlet points meet. This clarifies who handles design, installation and aftercare.
Where plumbing ends and waterproofing begins
Plumbing normally owns outlets, downpipes and overflows. Waterproofing covers membranes, upstands, terminations and subsill integration.
Both trades must coordinate outlet locations at the edge and allow multiple outlets where needed. Threshold systems often require careful subsill setting by builders and window installers while plumbers make final connections.
Design, installation, and maintenance responsibilities across trades
Documentation is essential: falls set‑out, outlet sizing, membrane terminations and compatible materials must be recorded to avoid scope gaps.
- Specify access items: strainers, clean‑outs and removable grates for safe maintenance.
- Isolate dissimilar metals, use compatible sealants and avoid fixings that puncture membranes.
- Coordinate construction sequencing so membranes are protected and penetrations tested before handover.
We use quality materials through brand partnerships and act as your single 24/7 contact for urgent repairs across Melbourne — call 1800 571 216.
| Task | Primary Trade | Key Requirements |
|---|---|---|
| Outlets & connections | Plumber | Size, location at edge, multiple outlets allowance |
| Membrane & upstands | Waterproofer | Terminations, subsill integration, compatible sealants |
| Threshold & subsill setting | Builder / Window installer | Setting out, falls, protection during construction |
| Maintenance access | Facilities / Owner | Strainers, clean‑outs, inspection schedule |
Compliance in Australia: regulations, standards and risk
Compliance shapes how we detail level thresholds and manage water at external edges. The National Construction Code (NCC) provides baseline requirements for safety, amenity and sustainability in all buildings.
NCC requirements, livable housing provisions and level threshold design
The NCC sets performance expectations that affect threshold heights, falls and access. Livable housing provisions encourage level transitions to improve accessibility.
Level thresholds change set‑downs and can reduce visible falls. That means we must plan how the floor meets outlets and membranes to prevent water migrating into interiors.
Waterproofing obligations drawn from AS 3740 insights for wet areas
AS 3740:2021 updates fall and floor waste guidance. Common issues include incorrect grading and poor membrane terminations.
We follow AS 3740 and aim to exceed minimums where practical, using proven membranes and WaterMark‑compliant components to reduce future failures.
Why “chasing the minimum” increases water ingress and structural damage risk
Meeting only the bare minimum can leave latent defects that emerge after handover. Small savings at the design or construction stage often create larger remediation costs later.
We recommend early coordination of design and construction documents so every trade understands requirements and responsibility. For urgent compliance failures at level thresholds, call OnCall Emergency Plumbers on 1800 571 216.
- Maintain minimum falls and overflow paths.
- Specify certified drainage components and compatible membranes.
- Document terminations, outlet sizes and inspection points.
| Area | Key requirement | Who |
|---|---|---|
| Threshold set‑down | Accessible level, clear fall to outlet | Designer / Builder |
| Membrane termination | AS 3740 compliant details | Waterproofer |
| Outlet specification | WaterMark certified, sized for capacity | Plumber |
balcony drainage
Choosing the right collector type and outlet layout is central to reliable external water control.
Lineal versus central collectors and outlet placement

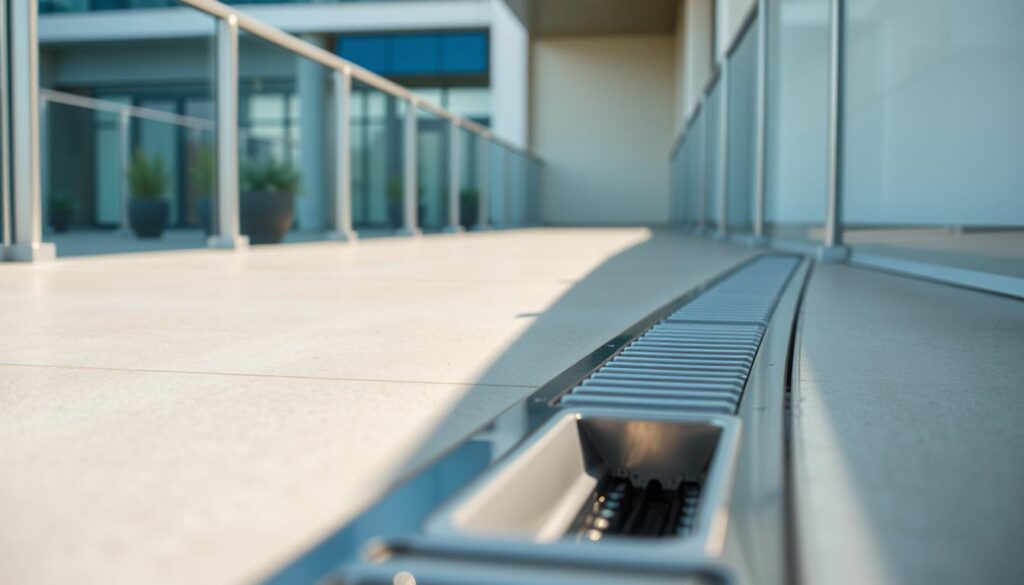

Lineal threshold drains suit narrow areas where profile depth allows. They give a neat, continuous exit at the door line and reduce local low spots.
Central point drains work well on larger decks with positive falls to one location. Multiple outlets spaced along a channel increase resilience during heavy storms.
Depth profile, fall and a uniform plane
Set a consistent fall so the whole surface sheds water toward the chosen outlet. Threshold channels remove the need for “dishing”, which traps water and ages finishes.
Managing water accumulation, staining and safe discharge points
Free‑draining edges can drip onto façades and create staining. We prefer managed discharge paths — soffits, drip trays or safe ground outlets — to protect neighbours and finishes.
Concrete balconies, metal structures and corrosion
Concrete balconies and metal structures behave differently. Movement joints, compatible fixings and isolated metals reduce corrosion risk in coastal or chemically‑exposed areas.
We design and install practical solutions across Melbourne, from lineal thresholds to central wastes and overflows, and we respond 24/7 for blocked drains, leaks and urgent failures. Call us on 1800 571 216.
| Option | When to use | Key benefit |
|---|---|---|
| Lineal threshold | Restricted depth, narrow doors | Uniform plane; fewer local pools |
| Central point drain | Larger surface, single fall | Simpler pipe run; easy strainer access |
| Multiple outlets | High flow or stacked systems | Redundancy; reduced blockage risk |
How the waterproofing interface is detailed and executed
We focus on how a waterproofing interface is specified and built so thresholds perform from day one.
Membrane terminations, thresholds and subsill integration
We detail membrane terminations at thresholds and edges, specifying minimum upstands, secure bonding and correct overlap with subsill flashings and drainage components.
We coordinate with builders and door suppliers to set subsills so water is directed into the drain rather than behind the membrane. Custom channel profiles are tailored for capacity, load and finish compatibility.
Falls to the drain, surface finishes and slip-resistant grate selection
We set falls across the floor to maintain a uniform plane and avoid local dishing. Screeds, tiles and finishes are matched to the design so the surface sheds water to outlets reliably.
- Specify slip‑resistant grates that suit finish thicknesses and maintenance access.
- Nominate compatible materials—membranes, adhesives, sealants and metals—to prevent staining or corrosion.
- Protect membranes during construction, include removable strainers and plan water tests for as‑built verification.
| Check | Who | Accept criteria |
|---|---|---|
| Termination detail | Waterproofer | Overlap, upstand, sealed subsill |
| Falls & surface | Builder / Designer | Uniform plane to drain |
| Access & testing | Project Team | Removable grates, water test passed |
For leaks at door tracks or overflowing threshold channels, OnCall Emergency Plumbers is available 24/7 on 1800 571 216.
From design to aftercare: preventing drainage problems in multi-residential buildings
Preventing recurring water problems starts with a design that plans for stacked-level flows and easy maintenance.
We set practical rules at design so stacked edges do not cause cascading discharge. Early coordination of outlets, overflows and maintenance access reduces staining and structural damage.
Key considerations for stacked configurations
Plan outlet alignment so upper levels do not overload lower units. Provide controlled overflow paths and corrosion‑resistant material where needed.
Allow redundancy — multiple outlets or larger channels cut the risk of ponding during storms.
Detecting system issues early to prevent water ingress
Watch for slow drains, ponding at thresholds and water accumulation under finishes. Musty smells, stained soffits or damp patches inside are early warning signs.
When to call OnCall Emergency Plumbers
If residents report active leaks, blocked outlets or suspected bursts, call us immediately. We offer rapid emergency repairs to stop spread and limit structural damage.
Our 24/7 Melbourne support, quality materials and brand partnerships — 1800 571 216
We respond 24/7 across Melbourne. We use branded components and proven systems to keep costs reasonable without cutting reliability.
| Concern | Preventive action | Who |
|---|---|---|
| Cascading discharge | Align outlets, add controlled overflows | Designer / Plumber |
| Water accumulation | Redundant outlets, routine cleaning | Facilities / Strata |
| Corrosion & staining | Use compatible materials, inspect joints | Builder / Maintenance |
| Active leaks | Isolate area, call emergency team | OnCall (24/7) 1800 571 216 |
Conclusion
We have one clear aim: align responsibilities so threshold details and outlet layout keep floors dry and reduce long‑term risk to the building.
Design for falls and overflow paths, choose the right solution—lineal threshold or central point drain—and verify the drainage system before handover.
Use compatible materials and corrosion controls to protect finishes and structures, especially in coastal or exposed areas. Redundancy and maintenance access cut the chance of blockages and water ingress during storms.
Document who maintains drains, how often cleaning occurs and when membranes are inspected. For Melbourne projects or emergencies, trust OnCall Emergency Plumbers — 24/7, experienced teams, quality materials and proven methods. Call 1800 571 216.
FAQ
Who is responsible for the waterproofing and the edge details on an external platform?
We clarify roles early in a project. The waterproofing contractor must detail and install the membrane up to agreed termination points, while the plumber supplies and connects outlets and downpipes. The builder coordinates both trades so the edge interface is watertight and accessible for inspection.
Where does plumbing work finish and membrane work begin?
We expect plumbing to provide a certified outlet set to the finish level. The membrane installer then laps over or seals to that outlet as specified in contract documents. Clear handover details prevent gaps where water can penetrate the structure.
Who maintains responsibility for design, installation and ongoing upkeep across trades?
We recommend the principal contractor define responsibilities in writing. Designers set fall and outlet locations, installers follow those drawings, and the building owner or strata typically manages routine cleaning and maintenance unless warranty terms assign otherwise.
What Australian standards and codes apply to edge interfaces and water management?
We follow the National Construction Code and relevant Australian Standards, including those for waterproofing and plumbing. These documents set minima for safety, falls, and leak prevention, and must be complied with during design and construction.
How do NCC requirements and livable housing provisions influence threshold design?
We design thresholds to meet NCC access and safety rules, balancing a low profile with adequate water containment. Accessible thresholds must still allow controlled drainage without creating trip hazards or allowing water to enter adjacent indoor spaces.
What do AS 3740 and similar standards require for wet-area protection?
We apply AS 3740 principles to external edge zones where moisture risk is high. That includes continuous membranes, correct terminations at penetrations, and validated junction details to reduce moisture migration into the building fabric.
Why is designing to the minimum acceptable standard risky?
We avoid “minimum” solutions because marginal compliance can let water accumulate, causing staining, corrosion and structural damage over time. Robust detailing and conservative fall allowances reduce long‑term repair costs and liability.
What are the pros and cons of linear versus central outlet systems?
We use linear systems where a continuous channel offers fast surface runoff with greater tolerance for finish joints. Central outlets work in simpler layouts but concentrate flow at a single point, increasing clog risk if not easily accessible for cleaning.
How should fall and depth profile be handled to avoid ponding and dishing?
We specify a consistent fall across the entire surface so water moves steadily to outlets. Substrate profiling and screed layers must be controlled to avoid low spots. Proper checks during installation prevent future pooling.
How can we manage runoff to prevent facade staining and unsafe discharge?
We position outlets and downpipes to direct water away from finishes and pedestrian zones. Splash zones need protection, and outlet design should prevent overflow that causes staining or delivers water into sensitive ground areas.
What special concerns apply to concrete versus metal framed structures?
We treat concrete as a moisture‑retaining substrate needing robust membranes and crack control, while metal frames require corrosion protection and thermal movement detailing. Both demand compatible fixings and decoupled junctions to prevent water trapping.
How are membrane terminations, thresholds and subsills integrated on site?
We detail membrane terminations to mechanically fix or chemically bond to flashings and subsills. Thresholds are set to allow water to pass to the channel without entering interiors, using sealants and stainless‑steel fixings where required.
How do we ensure surface finishes and grates remain slip resistant while allowing adequate discharge?
We select slip‑rated finishes and grates certified for wet areas, balancing void area for flow with anti‑trip profiles. Regular cleaning regimes keep grates free of debris so design performance is maintained.
What special design considerations apply to stacked, multi‑storey arrangements?
We coordinate outlet alignment, access panels and load paths between stacked units so upper floor run‑off does not overload lower systems. Redundancy and inspection access reduce the risk of concealed failures affecting multiple units.
How can early detection prevent moisture ingress and structural damage?
We recommend scheduled inspections, clear access to outlets and regular cleaning. Early signs such as slow drainage, staining or efflorescence should trigger immediate investigation to prevent escalation.
When should we call OnCall Emergency Plumbers for blocked outlets or leaks?
We call OnCall when blockages, sudden leaks or suspected structural water ingress occur. Their emergency response helps limit damage and restore flow quickly, especially where safety or occupancy is affected.
What support does OnCall provide in Melbourne for urgent repairs?
We can access OnCall’s 24/7 Melbourne service for immediate unblock, repair and temporary protection work. They use quality materials and manufacturer‑approved products and can be contacted on 1800 571 216 for rapid assistance.
